The Introduction of High-silicon aluminum saw blade for automobiles

Product Description

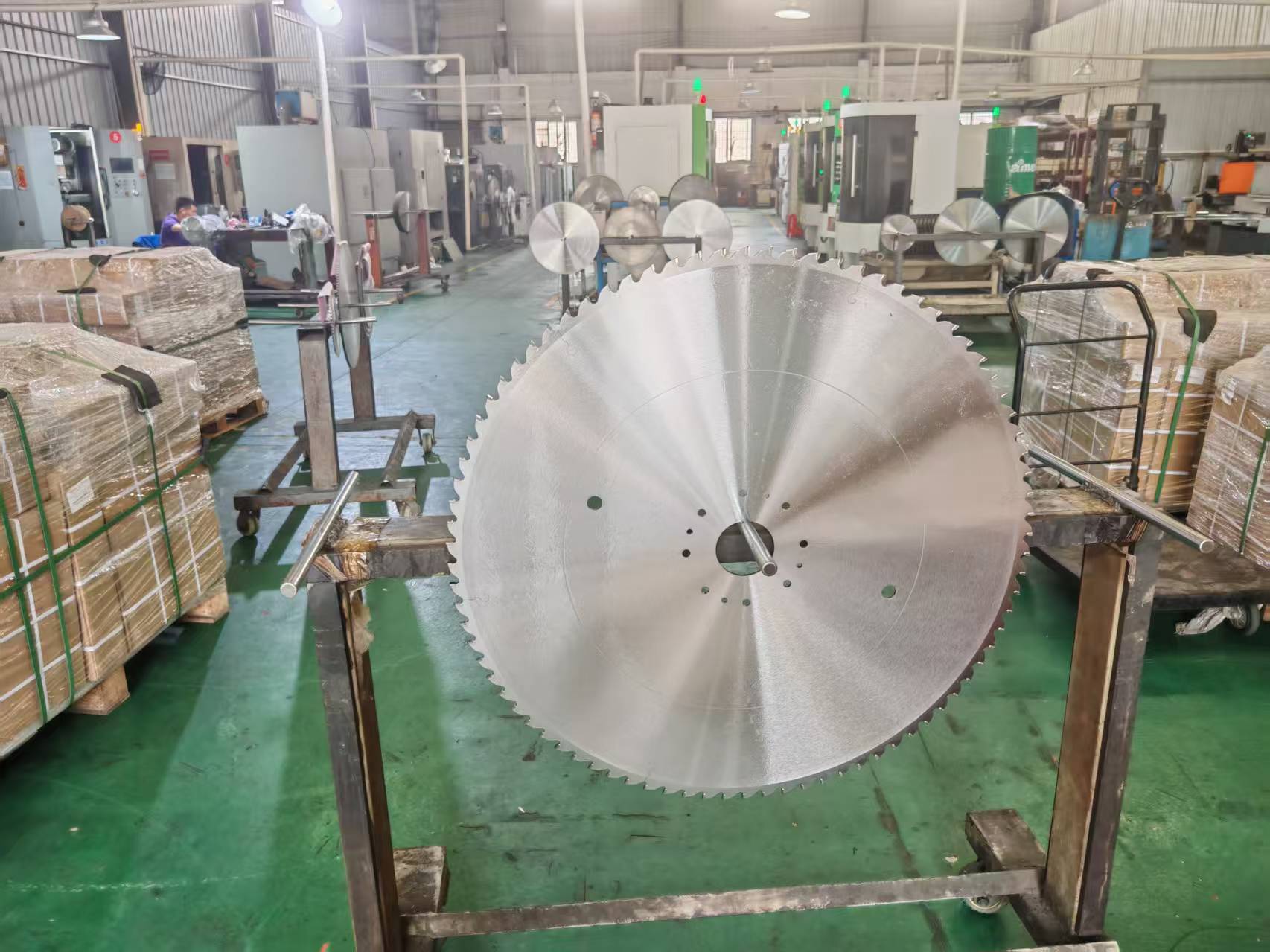

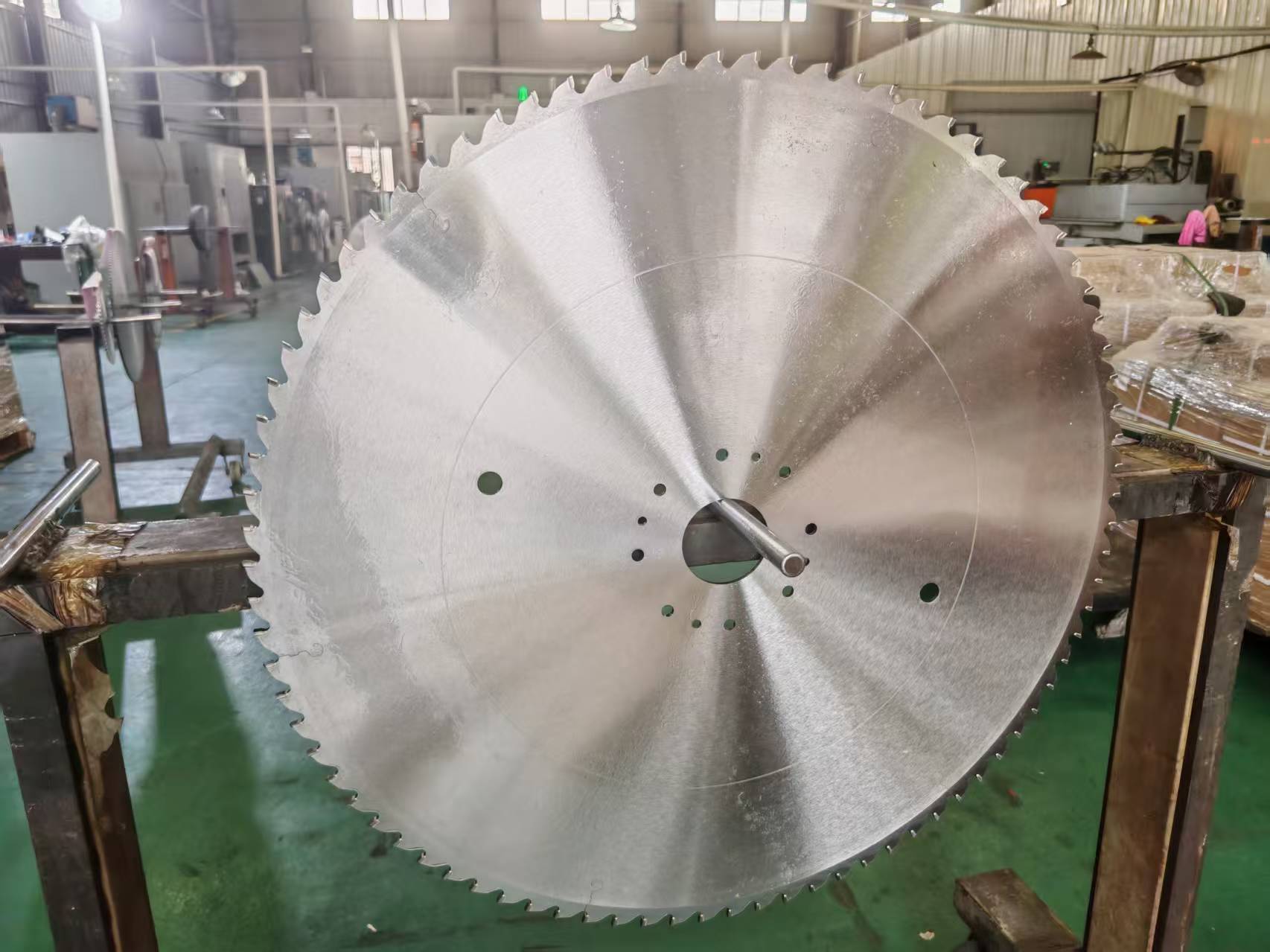

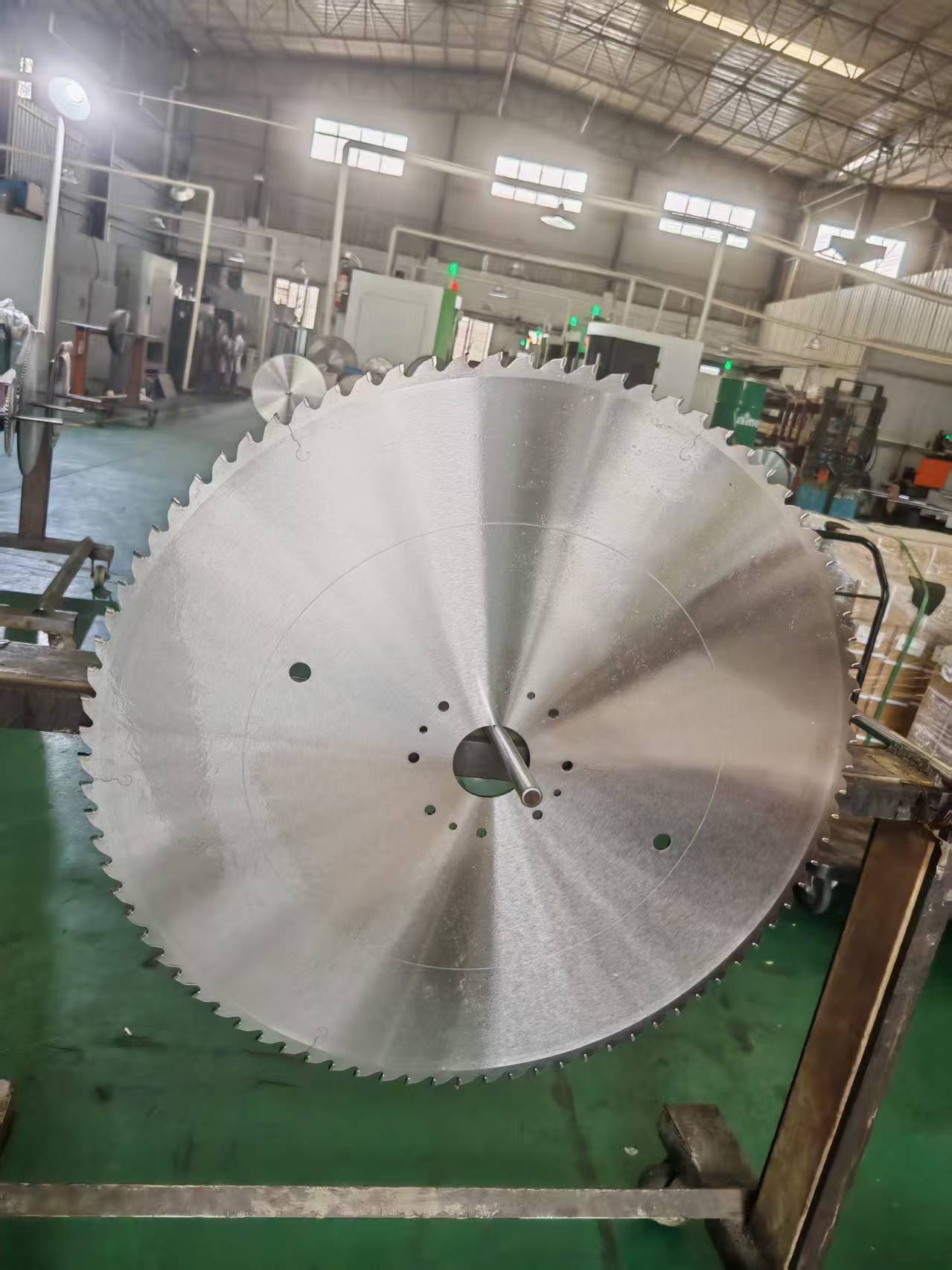

The "High-Silicon Aluminum Saw Blade for Automotive Applications" is a specialized cutting tool designed for machining high-silicon aluminum alloys commonly used in automotive components. These materials are widely used in the automotive manufacturing industry, such as in engine blocks, cylinder heads, pistons, steering knuckles, and wheel hubs.

Core Features and Requirements

• Extremely High Wear Resistance:

  To withstand abrasive wear from hard silicon particles.

• Exceptional Sharpness:

  To reduce cutting forces, prevent material tearing or burrs, and minimize heat generation.

• Excellent Chip Evacuation:

  To prevent aluminum chips from adhering to the blade (aluminum is prone to built-up edge).

• Optimized Cutting Angles:

  Specially designed rake, clearance angles, and tooth geometry for smooth, burr-free cutting.

Key Design Elements of the Saw Blade

• Blade Body Material:

  Typically made of high-strength alloy steel, precision heat-treated to ensure maximum rigidity and stability.

• Premium Choice:

  Diamond-Coated Carbide Teeth​ or Polycrystalline Diamond Compacts Teeth. This is the optimal solution​ for cutting high-silicon aluminum. The hardness of PCD/diamond is several times that of hard silicon particles, offering exceptional wear resistance and a service life tens to hundreds of times longer than standard carbide blades.

Tooth Geometry

• Large Gullets:

  Ensure rapid and smooth chip evacuation, preventing clogging and recutting.

• Precision Grade:

  Blades are typically high-precision ground and dynamically balanced​ to ensure stability and cutting accuracy at high rotational speeds.

Typical Applications

• Automotive Component Manufacturing:

  Cutting engine block blanks, wheel hub blanks, suspension components, etc.

• Foundry Industry:

  Sawing risers and flash from high-silicon aluminum castings.

• Automotive Repair and Modification:

  Cutting or modifying aluminum alloy parts.

Selection and Usage Guidelines

• High-Speed/Friction Sawing:

  Very fast but results in poor surface finish with signs of melting. Not recommended for high-precision parts.

• Compatibility with Equipment:

  Ensure the blade's outer diameter, bore diameter, and number of teeth​ perfectly match your sawing machine.

Key Parameters

• Tooth Count:

Typically, blades with fewer teeth (e.g., 60-120 teeth, depending on diameter) are chosen to ensure sufficient chip clearance. Thicker materials require even fewer teeth.

• Cutting Speed:

For PCD blades cutting aluminum, the cutting speed is usually between 100-300 m/min. Refer to the manufacturer's recommendations for specifics.

• Feed Rate:

Use a steady, moderate feed rate. Excessive feed can cause tooth chipping, while too slow a feed increases frictional wear.

For continuous, high-quality cutting of high-silicon aluminum alloys in the automotive industry, investing in a specialized PCD-coated cold saw blade from a top international brand offers the best cost-performance ratio. Although the initial cost is higher, its exceptional longevity, consistent cutting quality, and low cost per part make it highly advantageous for mass production.
