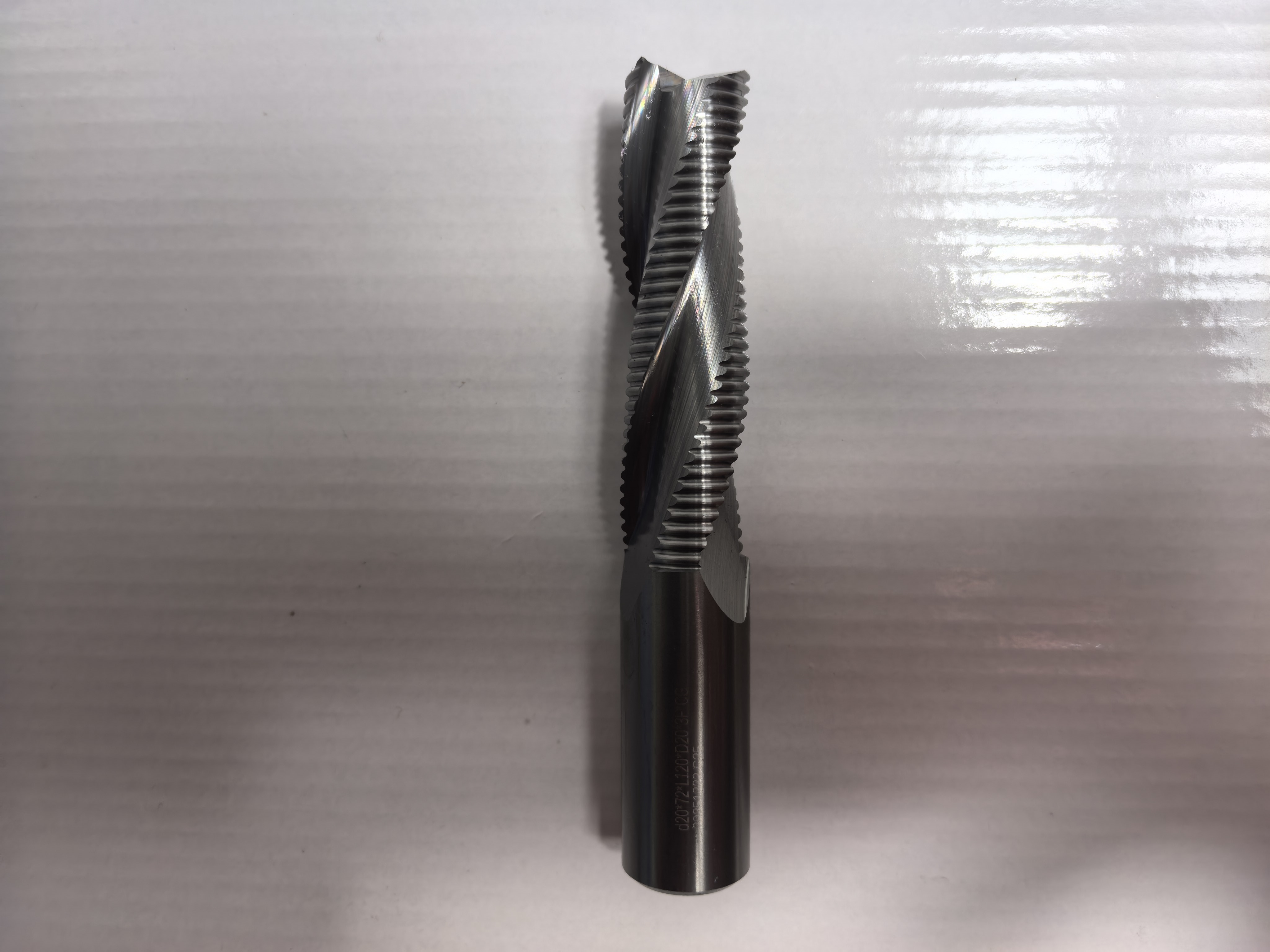

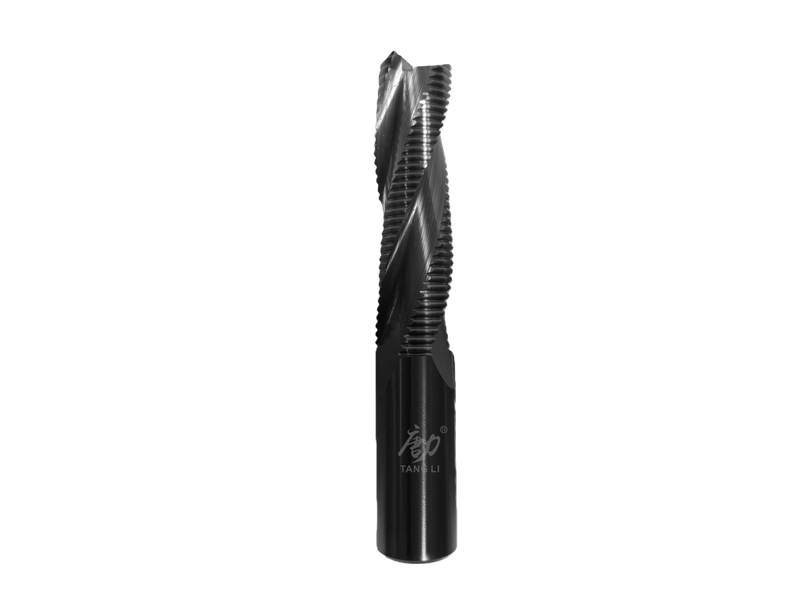

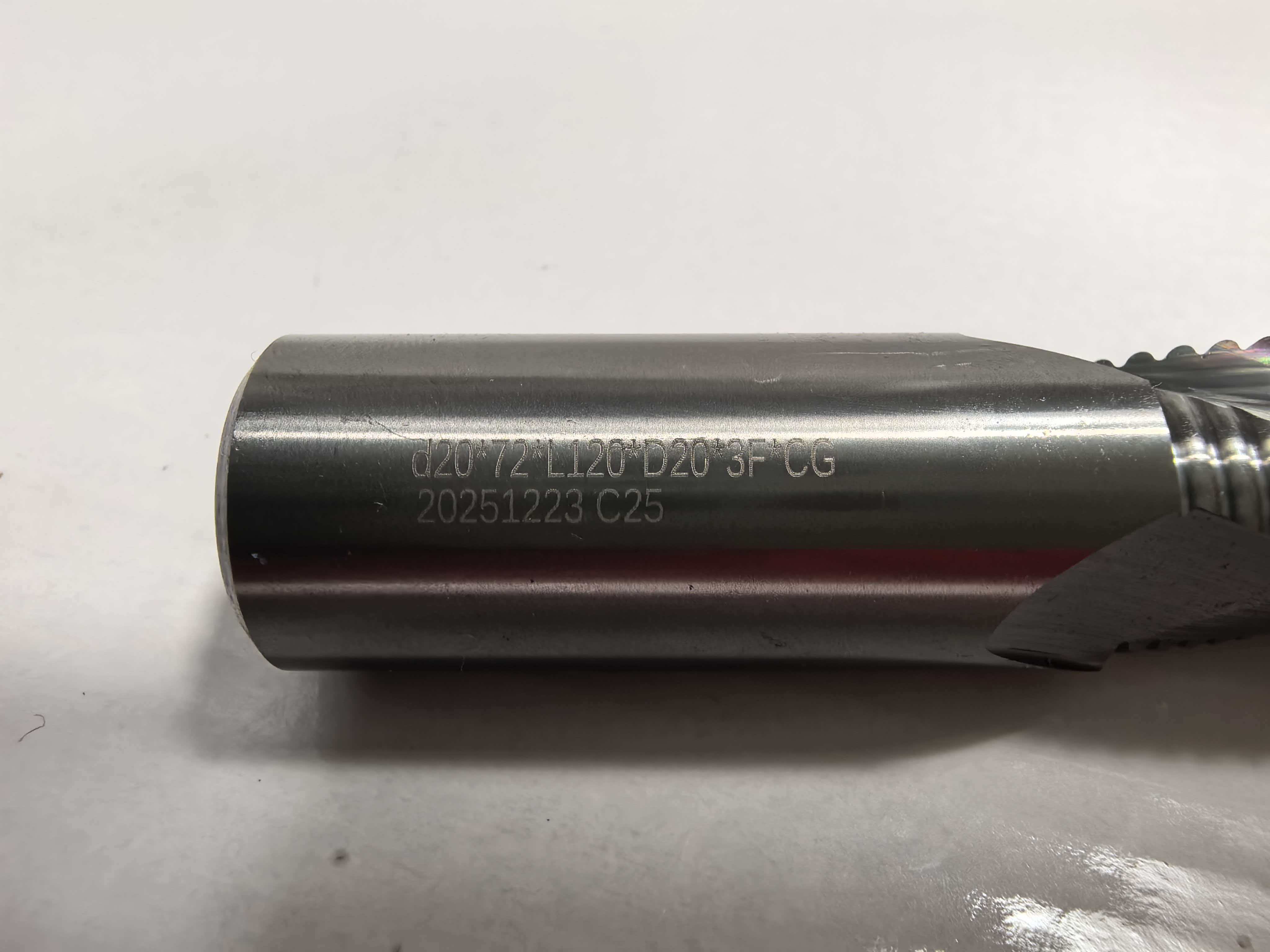

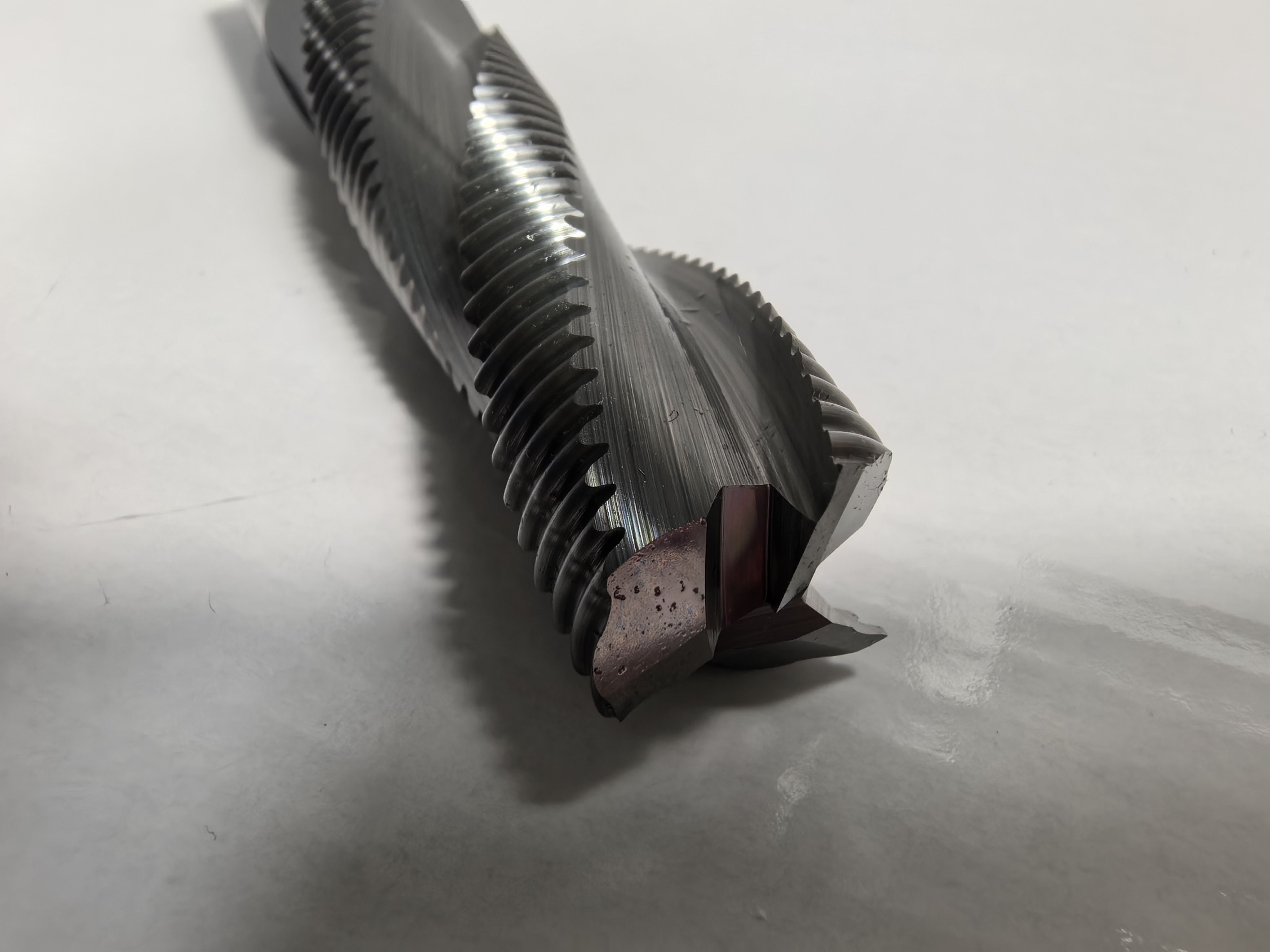

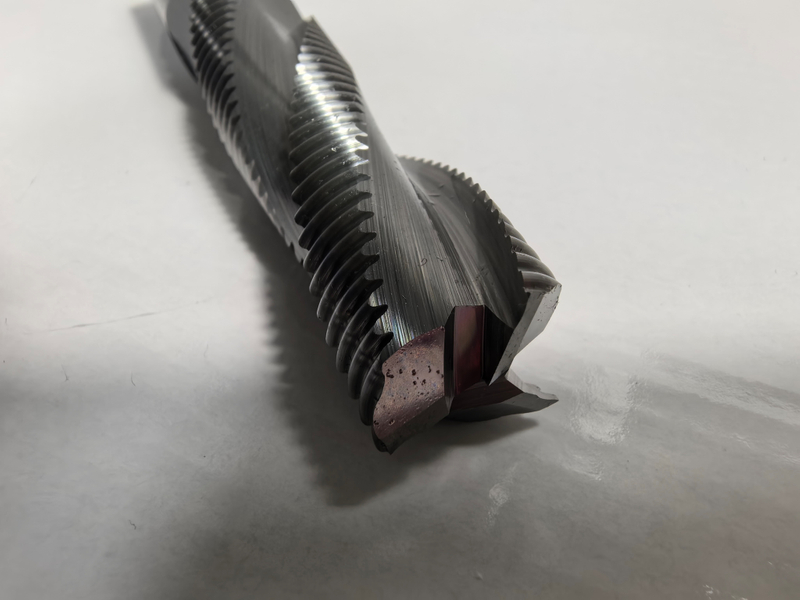

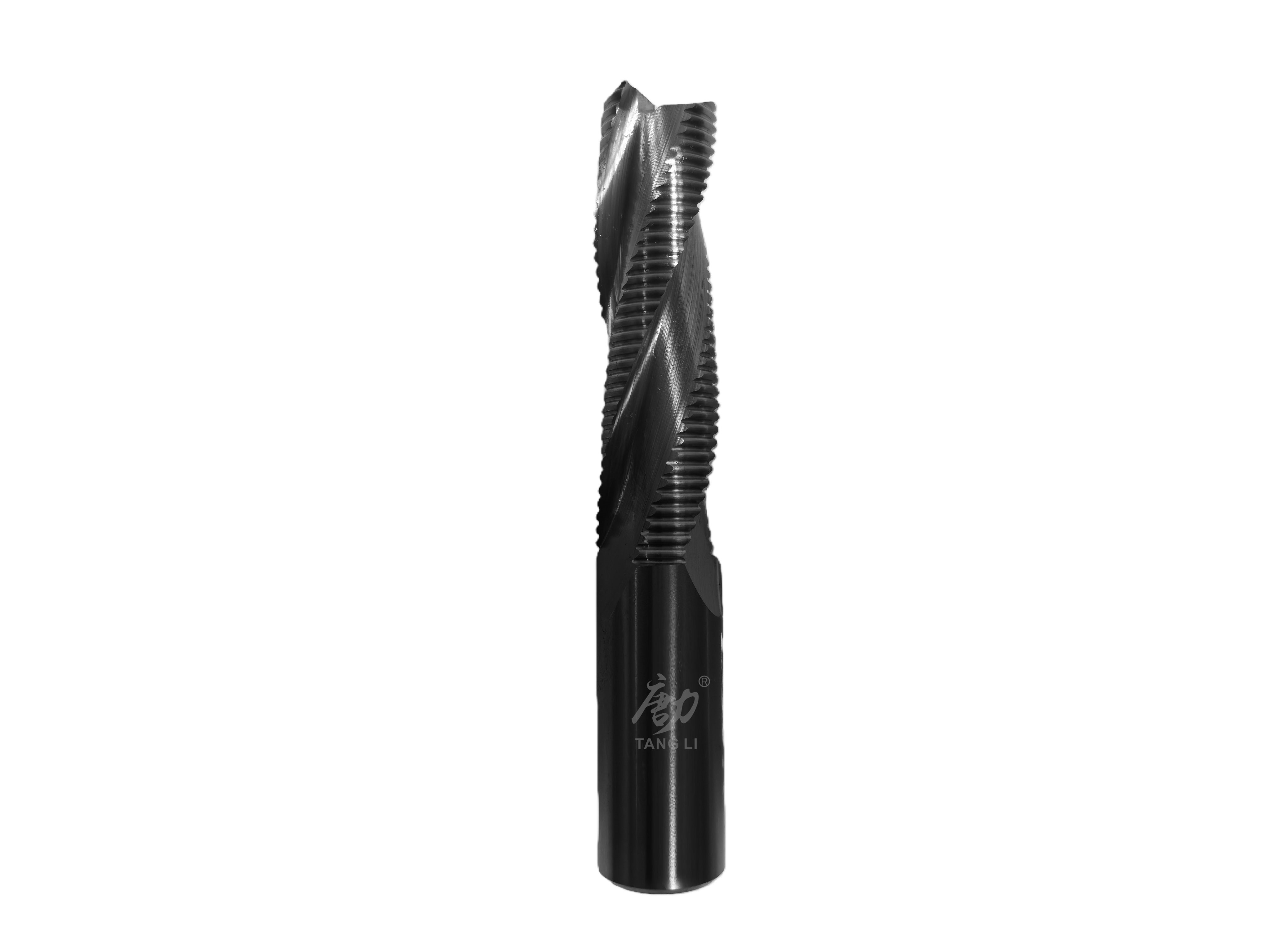

Tungsten carbide end mills (roughing cutters)

Product Description

They are end mills made from tungsten carbide (a composite of tungsten carbide particles in a cobalt binder), designed specifically for high-speed, high-volume material removal (roughing) before a finishing operation. Their geometry is optimized for strength, chip evacuation, and minimal vibration.

Key Features & Geometry (Why They're Different from Finishers)

The design is all about durability and chip management.

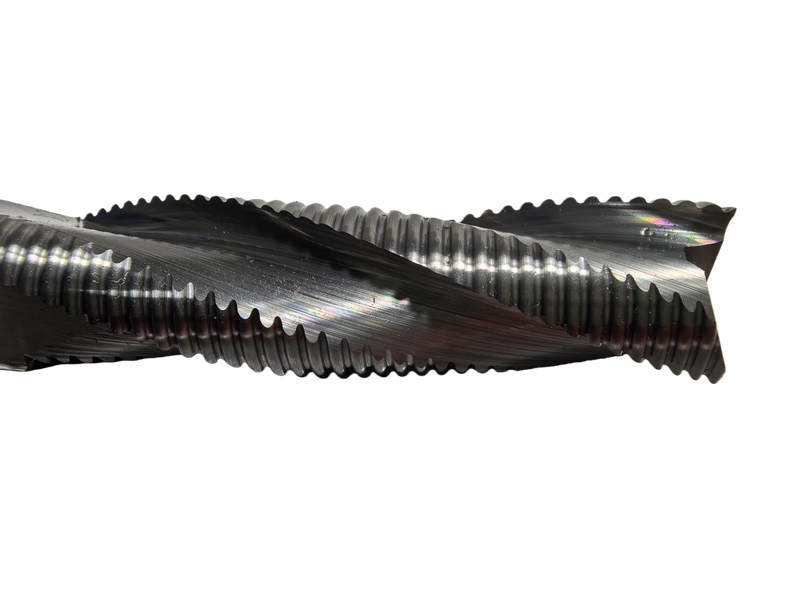

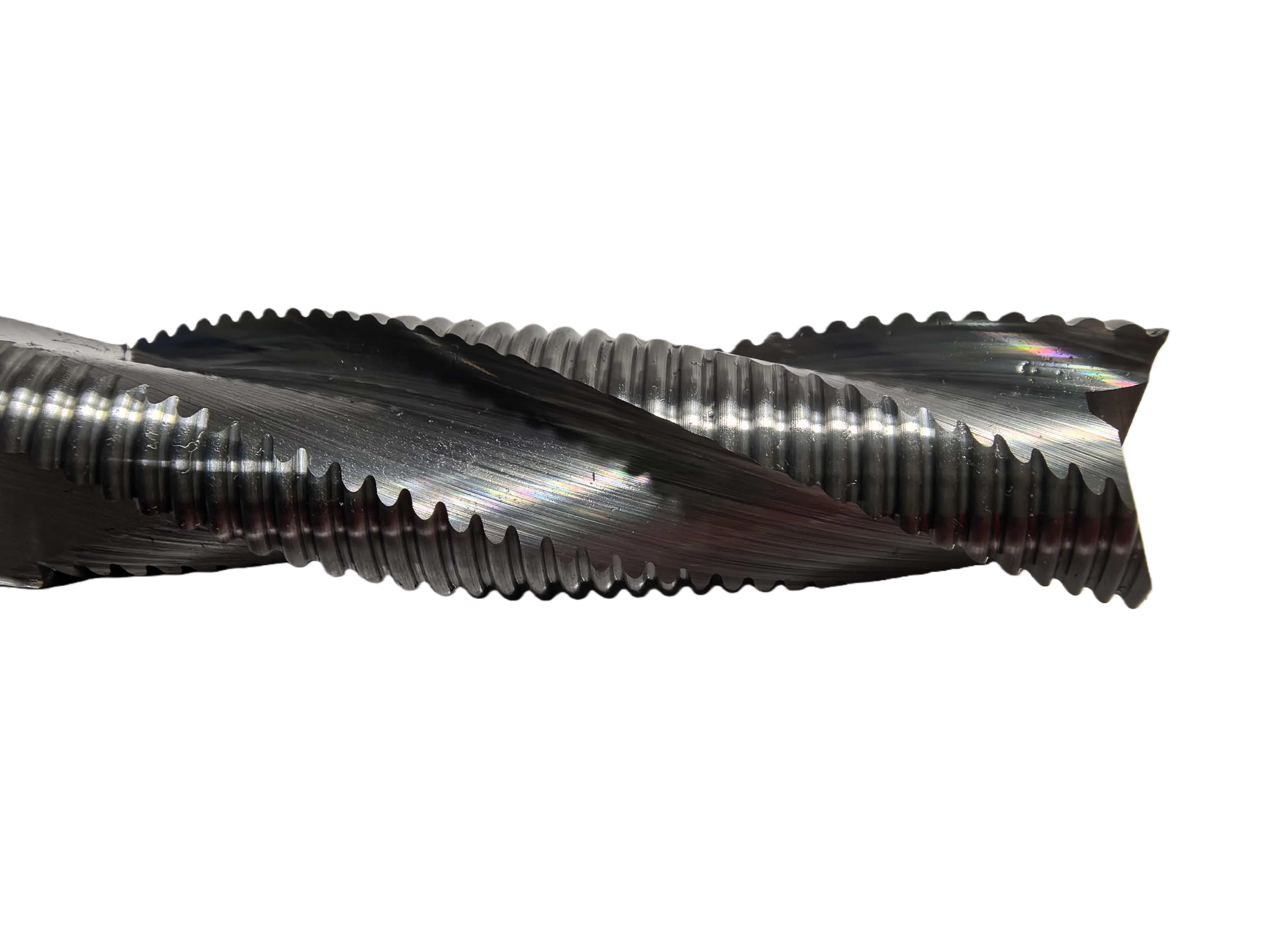

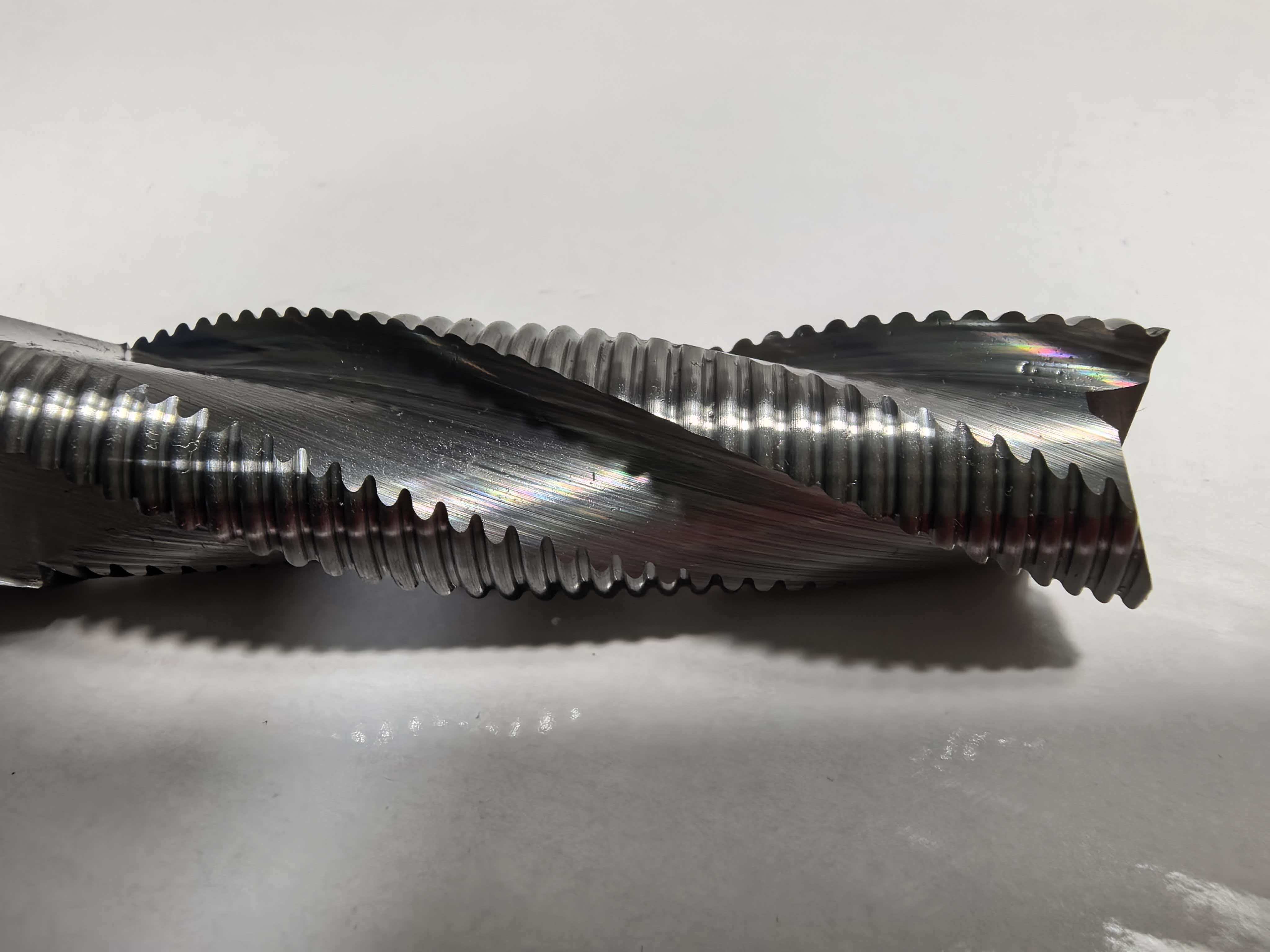

1. Serrated/Corrugated Flutes (The #1 Identifier):

• The flutes have a wavy, notched, or "knuckle" design.

• Purpose: Breaks long, stringy chips into small, manageable "C" or "6" shapes. This prevents chip re-cutting, reduces heat, and protects the flutes.

• Benefit: Allows for much deeper axial depths of cut (DOC) at full slotting widths.




2. Strong Core & Reduced Necking:

• They have a larger core diameter (more carbide) behind the flutes than a finishing end mill of the same diameter.

• Purpose: Maximizes rigidity to resist deflection and bending under high cutting forces.




3. Fewer Flutes (Typically):

• Common configurations: 3, 4, or 5 flutes.

• Why Fewer? Creates larger gullets (the space between flutes). This provides massive chip clearance, essential for evacuating the high volume of chips produced during roughing. A 3-flute rougher is a very common general-purpose tool.

Common Applications

• Pocketing & Profiling: Quickly clearing out large volumes of material from a block (e.g., mold cavities, aerospace structural parts).

• Shoulder Milling: Taking deep axial cuts along an edge.

• Slotting: Especially in tough materials where chip evacuation is critical.

Materials: Excellent for steels, stainless steels, titanium, Inconel, and also used for roughing aluminum (often with polished flutes and specific geometry).

Selection Criteria & Best Practices

1. Material: Match the carbide grade/substrate and coating to your workpiece material.




2. Diameter: Choose based on the features you're machining. A smaller core allows for tighter corners.




3. Number of Flutes:

• 3 Flutes: Best chip evacuation for steel & stainless. Good balance of strength and space.

• 4 & 5 Flutes: Higher feed rates possible, better for high-temp alloys & finishing passes. Slightly reduced chip space.




4. Cutting Parameters:

• High Feed Milling: This is their superpower. Use a low axial DOC (e.g., 0.020"-0.100") but a very high feed per tooth (e.g., 0.005-0.012 inches per tooth). This engages a small part of the cutting edge but moves it through the material extremely fast, putting heat into the chip, not the tool.

• Traditional Roughing: Higher axial DOC (up to 1x diameter), moderate feed rates.




5. Tool Path Strategy: Modern CAM software uses dynamic milling or adaptive clearing toolpaths that maintain a constant tool engagement angle. This is a perfect match for carbide roughers, allowing them to run at their full potential with minimal shock loading.

Tungsten carbide roughing end mill is the workhorse for modern CNC machining, designed to remove material as quickly and efficiently as possible. Success depends on matching the tool's geometry, coating, and grade to the specific material, machine, and operation.
