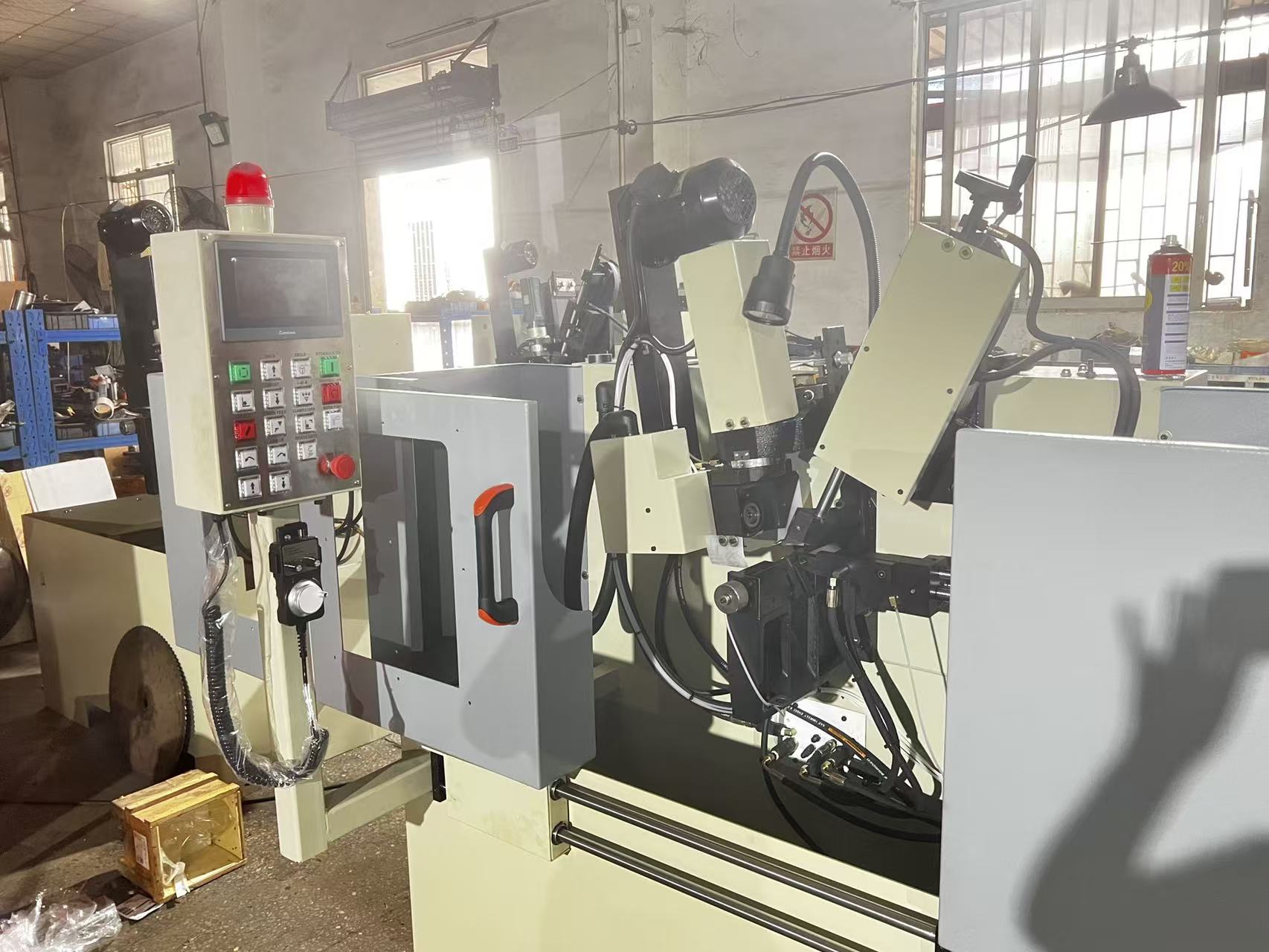

The Introduction of 026 SERVO-FEED FULLY CNC ALLOY CIRCULAR SAW BLADE FRONT AND REAR ANGLE GEAR GRINDING MACHINE

Product Introduction

Based on the description, this appears to be a highly specialized and advanced CNC grinding machine for manufacturing and sharpening high-performance circular saw blades, specifically alloy blades used in metal cutting.

1. "026 SERVO-FEED FULLY CNC"

• 026: Likely the model number or series designation from the manufacturer.

• SERVO-FEED: Indicates the machine uses precise servo motors to control the movement (feed) of the grinding wheel and/or the saw blade. This allows for highly accurate, programmable, and smooth motion.

• FULLY CNC: The entire grinding process is controlled by a Computer Numerical Control system. An operator programs the desired angles and geometries, and the machine executes them with repeatable precision.




2. "ALLOY CIRCULAR SAW BLADE"

• This specifies the primary workpiece the machine is designed for: circular saw blades made from alloy steel (like Tungsten Carbide Tipped - TCT blades for cutting aluminum, non-ferrous metals, or specific steels). These blades require very precise and complex tooth geometries.




3. "FRONT AND REAR ANGLE GEAR GRINDING"

• This is the core function. It grinds the critical angles on the blade's teeth:

• Front Angle (Face/Rake Angle): The angle on the face of the tooth that impacts chip formation and cutting force.

• Rear Angle (Clearance/Relief Angle): The angle behind the tooth's cutting edge that prevents rubbing and ensures clean cutting.

• "GEAR" Grinding: This is a key term. It implies the machine uses a gear-driven indexing system to rotate the saw blade between grinding each tooth. This ensures extremely precise and consistent pitch (the distance between teeth). It's a hallmark of high-end sharpening machines.

Summary of the Machine's Purpose:

This is a fully automated, computer-controlled machine that sharpens the teeth of alloy circular saw blades. It uses servo motors and a gear-driven indexer to grind both the front (rake) and rear (clearance) angles on each tooth with exceptional accuracy and consistency, ensuring the blade cuts smoothly, efficiently, and with a long life.

Key Features and Capabilities of the Machine:

- High Precision:

Gear grinding and servo-feed ensure each tooth is identical.

- Complex Geometry:

Can handle sophisticated tooth profiles (alternating top bevels, trapezoidal teeth, etc.) common in metal-cutting blades.

- Consistency & Repeatability:

Once programmed, it can sharpen hundreds of blades identically.

- Productivity:

Fully CNC operation allows for faster setup and grinding compared to manual machines.

- Flexibility:

Can likely be programmed for different blade diameters, tooth counts, and angle combinations.

Typical Users:

Saw Blade Manufacturers: For producing new blades.

Professional Sharpening Services: Specializing in industrial and high-end saw blades.

Large Woodworking or Metal Fabrication Shops: With in-house blade maintenance departments.
