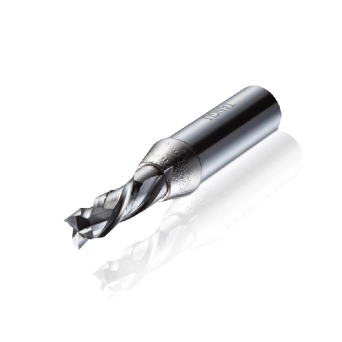

In modern machining, carbide end mills are considered one of the most essential tools for metal cutting and shaping. Their widespread use in industries such as aerospace, automotive, and mold manufacturing is largely due to their excellent hardness, wear resistance, and ability to maintain sharp cutting edges under extreme conditions. Understanding the hardness of carbide end mills is key for both professional machinists and engineers seeking to maximize tool life, improve machining efficiency, and achieve superior surface finishes.
While end mills come in various materials, carbide stands out for its ability to withstand high cutting speeds and resist deformation. However, the concept of hardness in carbide tools is more complex than it may appear. It is not just about resisting scratches or dents; hardness directly affects cutting performance, heat resistance, chip formation, and the overall lifespan of the tool. This article will explore what hardness means in the context of carbide end mills, how it is measured, why it matters in machining, and how to choose the right carbide end mill based on hardness.
Hardness, in the simplest sense, refers to a material’s resistance to deformation or penetration. For carbide end mills, hardness determines how well the cutting edges resist wear, chipping, and rounding under high-speed cutting conditions. Unlike metals such as steel, carbide is a composite material typically made from tungsten carbide particles bonded with cobalt. This combination provides a unique balance of extreme hardness and enough toughness to withstand mechanical stresses.
There are several key aspects to consider regarding the hardness of carbide end mills. First, hardness is not uniform; the outer cutting edges may be harder due to coatings or surface treatments, while the core retains slightly lower hardness to improve toughness. Second, hardness affects not only wear resistance but also the ability to retain sharp edges, which is critical when cutting hard materials like stainless steel, titanium, or high-temperature alloys.
Measuring hardness in carbide end mills is different from measuring it in standard metals. Common methods include the Vickers Hardness Test, Rockwell Hardness Test, and Knoop Hardness Test. Each method involves applying a controlled force to the material using a diamond indenter and then evaluating the resistance to deformation.
Vickers Hardness Test (HV): This method is widely used for carbide materials. It involves pressing a diamond-shaped indenter into the material’s surface and measuring the diagonal length of the indentation. The resulting hardness value indicates how resistant the carbide is to wear and deformation.
Rockwell Hardness Test (HR): Less commonly used for carbide but still relevant, the Rockwell test measures the depth of penetration under a specific load. Hardness is represented by a number and a scale (for example, HRA or HRB), giving an indication of the material’s resistance to localized plastic deformation.
Knoop Hardness Test (HK): This is particularly suitable for very thin layers, such as coated carbide tools. It measures hardness using an elongated diamond indenter, which is useful for evaluating surface coatings without affecting the core material.
Typically, uncoated tungsten carbide end mills have hardness values in the range of 1,500 to 2,200 HV, while coated tools may exhibit higher surface hardness due to the addition of titanium nitride (TiN), titanium aluminum nitride (TiAlN), or other hard coatings.
The hardness of a carbide end mill directly impacts machining performance. Tools that are too soft may wear quickly, losing sharpness and producing poor surface finishes. On the other hand, excessively hard tools may become brittle and prone to chipping or breaking under high mechanical stress. Understanding this balance is essential for effective machining.
Wear Resistance: Harder carbide tools resist abrasion and maintain their cutting edges longer. This is particularly important when machining abrasive materials such as stainless steel, hardened steel, or composites. A tool that retains its hardness performs more consistently over time, reducing the need for frequent replacements.
Heat Resistance: Hardness is also linked to the tool’s ability to withstand heat generated during high-speed cutting. Carbide end mills with higher hardness maintain their structural integrity at elevated temperatures, reducing the risk of softening, deformation, or loss of sharpness.
Precision and Surface Finish: The sharpness of the cutting edge, maintained through hardness, directly affects dimensional accuracy and surface finish. Tools that lose hardness too quickly tend to produce burrs, rough surfaces, and out-of-tolerance parts.
Tool Life and Cost Efficiency: A harder carbide end mill generally lasts longer, allowing more parts to be machined per tool. While harder tools can be more expensive initially, the longer lifespan often reduces overall machining costs and downtime.
While hardness is critical, it is equally important to consider toughness—the ability of the tool to resist fracture under impact or heavy cutting forces. Carbide is inherently brittle, and overly hard tools may chip or break if subjected to sudden forces. Manufacturers address this by controlling the cobalt content in the carbide, the grain size of the tungsten carbide particles, and applying coatings that enhance surface hardness without compromising the core toughness.
For example, fine-grain carbide with a cobalt binder offers higher hardness and wear resistance, making it suitable for high-speed finishing. Coarser grains provide greater toughness, allowing tools to handle roughing and interrupted cuts without chipping. Selecting a tool with the right combination of hardness and toughness ensures reliable performance across different machining operations.
When selecting a carbide end mill for specific machining tasks, hardness should be considered alongside material, coating, and operation type. Here are some guidelines:
High-Hardness Carbide for Finishing: For precision finishing operations, where surface quality and tight tolerances are essential, choose a carbide end mill with high hardness and a suitable coating. These tools maintain sharp edges longer and produce smoother surfaces.
Moderate-Hardness Carbide for General Milling: For general-purpose milling, a balanced hardness that combines wear resistance with toughness is ideal. This type of tool can handle a variety of materials without chipping easily.
Lower-Hardness, High-Toughness Carbide for Roughing: In heavy roughing operations or interrupted cuts, tools that are slightly less hard but tougher are preferred. These end mills can absorb cutting shocks and vibrations without fracturing, making them suitable for high-stress applications.
Coated Carbide End Mills: Coatings such as TiAlN or AlCrN increase surface hardness while maintaining the core toughness, making them versatile for high-speed machining and abrasive materials. Coated tools are particularly useful for stainless steel, titanium, and high-temperature alloys.
While the material and coatings define theoretical hardness, practical factors such as machining speed, feed rate, coolant use, and tool geometry also affect how the tool performs. For instance, excessive cutting speed can generate heat that locally softens the carbide, reducing its effective hardness. Similarly, inadequate chip evacuation can cause tool rubbing and premature wear. Therefore, understanding the hardness of carbide end mills is only part of the equation; proper machining practices are equally essential for achieving optimal results.
Carbide end mills are indispensable in modern machining, and their hardness is a key factor in determining cutting performance, tool life, and surface quality. Understanding how hardness interacts with toughness, coatings, and machining conditions allows engineers and machinists to select the right tool for specific applications. While harder tools offer excellent wear resistance and precision, toughness ensures the tool can withstand heavy cuts without chipping or breaking.
By balancing these factors, selecting the right coating, and optimizing machining parameters, carbide end mills can achieve exceptional performance even in demanding applications such as stainless steel, titanium, and high-temperature alloys. Recognizing the importance of hardness helps manufacturers reduce tool replacement costs, improve productivity, and produce high-quality components efficiently.
