Milling is one of the most common machining processes in modern manufacturing. It involves using a rotating cutting tool to remove material from a workpiece, shaping it into the desired form with high accuracy and efficiency. The quality of the cut, the speed of the operation, and even the type of material that can be machined depend heavily on the cutter being used. Milling cutters are the heart of this process, and they come in many different shapes and designs, each created for a specific purpose.
For beginners in machining, the variety of milling cutters can feel overwhelming, but understanding them is essential for choosing the right tool. In this article, we will explore the different types of milling cutters, how they work, and what applications they are best suited for. By the end, you will have a clear picture of the tools that make precision milling possible.
A milling cutter is a rotary tool with cutting edges that remove material from a workpiece. Unlike turning, where the workpiece itself rotates, in milling the cutter rotates while the workpiece is usually fixed in position or moves along controlled paths. The shape of the cutter, the number of cutting edges, and the material of the cutter all affect the final machining result.
Cutters are usually made from high-speed steel (HSS), carbide, or other advanced alloys that can withstand the heat and stress of cutting. They are mounted on milling machines and come in sizes ranging from very small precision tools to large industrial cutters. The main categories of milling cutters are defined by their geometry and intended function.

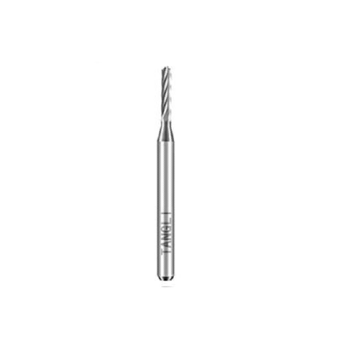

End mills are perhaps the most widely recognized type of milling cutter. They look like drills but differ in one important aspect: while a drill cuts only in the axial direction, an end mill can cut both axially and radially. This means end mills are versatile tools used for slotting, profiling, contouring, and even plunging into material.
End mills come in different shapes. Flat end mills create sharp edges and flat bottoms, making them ideal for machining precise slots and steps. Ball nose end mills have a rounded tip, allowing them to produce smooth curves and 3D surfaces, often used in mold-making and complex part production. There are also corner-radius end mills, which combine the strength of a rounded edge with the cutting action of a flat end, reducing tool wear and extending life.
Another important distinction is between single-end and double-end mills. Single-end mills have one cutting end and a shank, while double-end mills feature cutting edges on both ends, allowing the operator to flip the tool once one side is worn out, saving costs.
Face mills are larger cutters designed primarily for machining large, flat surfaces. They usually consist of a central body that holds multiple replaceable cutting inserts, which do the actual cutting. This design makes face mills efficient and economical, since worn inserts can be replaced without discarding the entire cutter.
Because they cover a wide surface area with each pass, face mills are ideal for roughing operations, leveling workpieces, or preparing a surface for finishing. They are widely used in industries such as automotive and aerospace manufacturing, where large flat surfaces must be machined quickly and precisely.
Slab mills are long, cylindrical cutters used for heavy-duty machining of wide surfaces. Unlike face mills, which use multiple inserts, slab mills have cutting edges all around their circumference. They are often applied in machining large metal blocks or in operations that require removing a significant amount of material in a single pass.
Although less common in smaller workshops due to their size, slab mills remain essential in heavy industrial machining. Their ability to handle demanding operations makes them suitable for steel rolling mills and production environments where efficiency is key.
Side and face cutters are specialized tools designed to cut slots and grooves. They resemble circular saw blades but are thicker and stronger, with cutting teeth not only on the periphery but also on the sides. This feature allows them to cut both the width and depth of a slot in one pass.
These cutters are often used in keyway cutting, T-slot machining, and applications where precision grooves are required. They are available in both straight and staggered tooth configurations, with staggered teeth offering smoother cutting and reduced vibration during machining.
Fly cutters are simple but effective tools often used for machining flat surfaces with high accuracy. They consist of a single-point cutting tool mounted on a rotating holder. Unlike multi-edge cutters, fly cutters cut with one edge at a time, which can produce excellent surface finishes if used correctly.
Although slower compared to face mills, fly cutters are popular in small workshops and tool rooms because of their versatility and cost-effectiveness. They can be easily customized with different tool bits, making them adaptable for different materials and surface requirements.
Hollow mills are less common but very useful in specific operations. They are tubular cutters with cutting edges on the inside surface, designed to machine the outside diameter of cylindrical workpieces. Essentially, they work like an inside-out drill, shaping shafts and round components.
Hollow mills are often used for producing consistent diameters in screw machining, bolt manufacturing, or operations where accuracy in external dimensions is critical.
Thread mills are specialized cutters used to machine threads into holes. Unlike taps, which cut threads by forming them in a single pass, thread mills gradually carve out the thread profile with multiple passes, offering more control and accuracy.
One of the main advantages of thread milling is versatility. A single tool can create threads of different diameters, as long as the pitch is the same. This makes them especially valuable in CNC machining, where precision and flexibility are important.
Gear cutters are designed specifically for gear manufacturing. They come in different profiles to cut gear teeth of various shapes, such as spur gears, bevel gears, or helical gears. These cutters are carefully engineered to match the geometry required for proper gear meshing and performance.
Gear cutting is a highly specialized field, and the cutters used must deliver extreme precision. Even small errors in tooth shape can cause gears to wear quickly or fail under load, which is why gear cutters are made to very tight tolerances.
Dovetail cutters are used to create dovetail slots, which are commonly used in machine tool design and woodworking joints. These cutters have angled sides that produce the distinctive trapezoidal profile of a dovetail joint. In metalworking, dovetail cutters are often used to machine sliding components such as tool holders and guideways.
Because the dovetail shape provides strong mechanical interlocking, these cutters play an important role in applications requiring durable and precise joints.
Although mentioned earlier as a type of end mill, ball nose cutters deserve special attention because of their importance in modern manufacturing. Their rounded tips make them indispensable for 3D contouring, complex mold machining, and sculpted surfaces. Industries such as aerospace, automotive, and die-making rely heavily on ball nose cutters to produce aerodynamic surfaces and intricate cavities.
Ball nose cutters are also valued for reducing stress concentrations in sharp corners, helping improve both the appearance and strength of machined parts.
T-slot cutters are designed to create the T-shaped grooves often found in machine tool tables and workholding fixtures. These slots allow clamps and bolts to secure workpieces firmly during machining. T-slot cutters have a narrow neck and wider cutting head, enabling them to cut the undercut portion of the slot effectively.
Their design makes them indispensable in workshop setups, ensuring that machines and tools can be used safely and efficiently.
Selecting the right cutter is as important as operating the machine itself. Factors such as the type of material, the required surface finish, the depth of cut, and the machine’s power all influence the choice. For roughing large surfaces, face mills or slab mills may be best, while intricate profiles call for end mills or ball nose cutters. For slots and grooves, side and face cutters or T-slot cutters are essential, while thread mills and gear cutters are reserved for specialized applications.
Cutter material also matters. Carbide tools last longer and cut faster but are more expensive, while high-speed steel is more affordable and suitable for less demanding operations. In modern CNC machining, coated cutters with titanium nitride or other protective layers are widely used to extend tool life and improve performance.
Milling cutters are the unsung heroes of machining. From simple end mills to specialized gear cutters, each type has a unique role that makes modern manufacturing possible. Understanding these tools helps machinists select the right cutter for the job, improving efficiency, accuracy, and surface quality. While the variety may seem overwhelming at first, it reflects the complexity of modern machining tasks, where no single cutter can meet all needs.
In short, the types of milling cutters include end mills, face mills, slab mills, side and face cutters, fly cutters, hollow mills, thread mills, gear cutters, dovetail cutters, ball nose cutters, and T-slot cutters, among others. Each brings its own strengths, and when chosen wisely, they allow manufacturers to create everything from simple slots to intricate aerospace components. Mastery of these tools is a cornerstone of precision engineering, and their importance cannot be overstated in the world of metal cutting and beyond.
